Gabion Basket
  • Gabion Basket
  • Gabion Basket
  • Gabion Basket
  • Gabion Basket
  • Gabion Basket
  • Gabion Basket
  • Gabion Basket
  • Gabion Basket
  • Gabion Basket

Gabion Basket

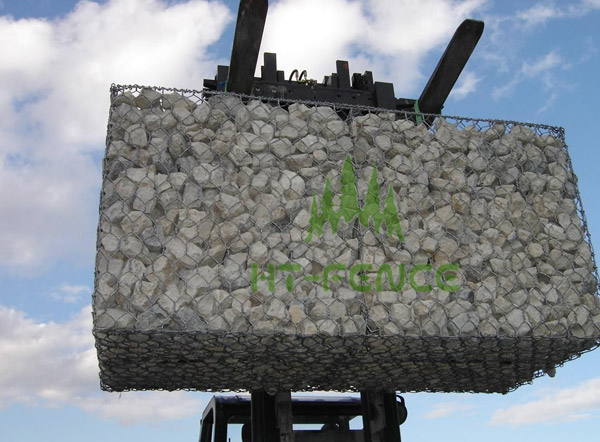

Gabions are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Gabions and geotextiles are normally used together to reduce water velocities and to re-capture river bed sediment in streams.

Previous Product

Next Product

Inquire Now

    Gabions are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Gabions and geotextiles are normally used together to reduce water velocities and to re-capture river bed sediment in streams. Flat Gabions, called River or Reno Mattresses, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour. They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures. Recently however, due to the environmental benefits associated with gabions, they are being used in many various applications and industries.

    The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion. In case of use in aggressive environments, it is further extruded with 0.5mm thick PVC Coating. The PVC coating is UV stabilized as per ASTM A 975.


    Welded gabion Features

    ● Strength and flexibility.

    ● Good decotative,not only used on river area,but also can used on decorative wall

    ● The double twisted hexagonal mesh means that the wire will not unravel when cut which allows the gabions to be easily cut and shaped to suit project requirements.

    ● Strong anti-corrosion:heavy galvanized wire or Galfan wire,or glued PVC coated wire,PE coated wire to make the gabion wire mesh can more improve capacity of anti-corrosion,can adapted to sea environment.

    ● Economy: Wire mesh gabions are less expensive than most construction materials. Graded stone fill is usually locally available. Waste materials such as crushed concrete may be specified in place of stone.


    Welded gabion Application

    It is often used in earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls.,gabion umbrella stand,etc.Gabions are also used for erosion control, bank stabilization, channel linings, and weirs.


  • Woven Gabion Specification
    Gabion size(m)Mesh openingWire diameterSurface treatment
    2×1×0.560 x 80mm      80 x 100mm      80 x 120mm      100 x 120mm      120 x 150mm2.2-4.0mmGalvanized      Galfan      PVC coated    PE coated
    2×1×1.02.2-4.0mm
    3×1×0.52.2-4.0mm
    3×1×1.02.2-4.0mm
    4×1×1.02.2-4.0mm
    6×1×1.02.2-4.0mm
    2×1×0.3(Mattress)2.2-4.0mm
    3×1×0.3(Mattress)2.2-4.0mm
  • Wire used low carbon steel wire,wire diameter2.2-4.0mm

    Surface:Galvanised or galfan or PVC coated and PE coated finished

    The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion. In case of use in aggressive environments, it is further extruded with 0.5mm thick PVC Coating. The PVC coating is UV stabilized as per ASTM A 975.


  • Delivery Terms:FOB, CIF

    Payment Currency:USD, EUR, AUD,JPY, CAD, GBP, CNY

    Payment Item:T/T, L/C, PayPal, Escrow

    Nearest Port:Xingang port,Qingdao port

    Delivery Time:General after 25days upon received T/T30% advance payment

    Popular Payment detail: T/T 30% in advance as deposit, the balance against received the copy of B/L.
