High security palisade fence
  • High security palisade fence
  • High security palisade fence
  • High security palisade fence
  • High security palisade fence
  • High security palisade fence

High security palisade fence

Height:1800-3000mm

Width:2750mm(Popular)

Pale:50mm,60mm,62mm,65mm,71mm

Angle Rail:40×40×4.0mm

           50×50×5.0mm(Popular)

           50×50×6.0mm

I Post:55×100mm(Popular)

Surface:Hot dipped galvanized&Powder coating

Other size are available


Previous Product

Next Product

Inquire Now

Download prochure

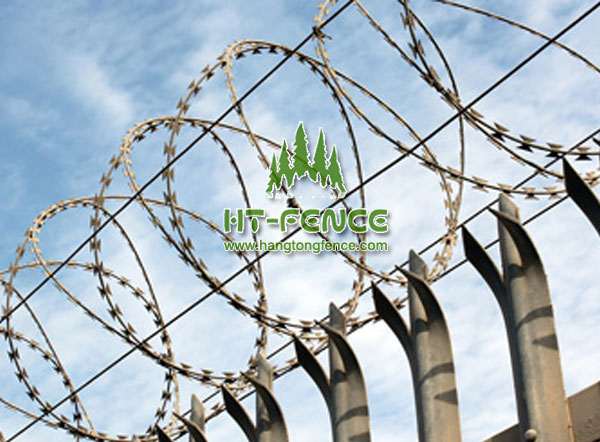

  • High security Palisade fencing means that razor wire on the general or bent head,it can improve the security to the top level and offers the best there is in a high security fence, a durable versatile fence at a cost effective price.

    Palisade is more secure than other fencing systems, so wherever security is a priority, Palisade is used.Steel palisade fencing is especially popular for schools,park and industrial sites because of its high damage resistance and the fact that it is so difficult to climb.

    As palisade fencing manufacturer,HT-Fence supply both the W section  and the D section style of palisade fencing, with the integrity of the palisade fence being maintained by the two horizontal rails that are used as standard in palisade fences up to three meters high.  However, we can supply other heights of palisade fencing as your required.

    High security Palisade Fence Features

    Bolt-on Palisade fencing can be installed by semi-skilled staff as there is no welding on site.

    Bolt-on Palisade fencing is easily transported. The components are packed in bundles.

    Bolt-on Palisade fencing which has been hot-dip galvanized is not compromised by welding on site.

    Bolt-on Palisade fencing can be easily moved to another fence line.

    Razor wire on the head can provide highest level security protection

    HT-Fence Palisade fencing is modular.Sections can be replaced easily if damaged by vehicles,falling trees,etc.

    Palisade Fence Application

    It is often used in villa,park,industrial plants,garden, insulated of road,school,station,residence community,etc.


  • High security Pale head:Can be do single pointed, triple pointed, square tops, round and notched tops or rounded only.

    Panel sizeW Pale section:62&70mmRailsPost
    Fence heightsPost DistancePale ThicknessQty:PaleCross RailsHeightI Post Section
    1.8m2.75m1.5/2/2.5/3mm17pcs40×40×4mm      50×50×5mm    50×50×6mm2400100×55mm
    2.1m2.75m1.5/2/2.5/3mm17pcs40×40×4mm      50×50×5mm    50×50×6mm2900100×55mm
    2.4m2.75m1.5/2/2.5/3mm17pcs40×40×4mm      50×50×5mm    50×50×6mm3200100×55mm
    3.0m2.75m1.5/2/2.5/3/3.5mm17pcs40×40×4mm      50×50×5mm    50×50×6mm3900100×55mm


    D Pale section: 65mm


    1.8m2.75m1.5/2/2.5mm17pcs40×40×4mm    or50×50×5mm2400100×55mm
    2.1m2.75m1.5/2/2.5mm17pcs40×40×4mm    or50×50×5mm2900100×55mm
    2.4m2.75m1.5/2/2.5mm17pcs40×40×4mm or 50×50×5mm3200100×55mm
    3.0m2.75m1.5/2/2.5mm17pcs40×40×4mm  or 50×50×5mm3900100×55mm

    Razor wire Size: General we used BTO-22 razor wire,but others can be chose,and the diameter can be chose around φ500,φ600,φ750,etc

  • Pale use mild steel plate(black or galvanized)

    Horizontal rails:Standard 50×50×6mm angle rail

    Post use I beam(100×55mm,100×68mm,126×76mm)

    Fixings:Steel plate:40×8×150mm

    Razor wire:Galvanized steel materiel

    Bolts:M8×30,M12×30 anti-vandal steel or stainless steel

    Surface:Galvanized or galvanized then powder coating finished

    Steel grade can be chose.

    Powder from AKZONOBEL


  • Delivery Terms:FOB, CIF

    Payment Currency:USD, EUR, AUD,JPY, CAD, GBP, CNY

    Payment Item:T/T, L/C, PayPal, Escrow

    Nearest Port:Xingang port,Qingdao port

    Delivery Time:General after 25days upon received T/T30% advance payment

    Popular Payment detail: T/T 30% in advance as deposit, the balance against received the copy of B/L.
