Welded Gabion

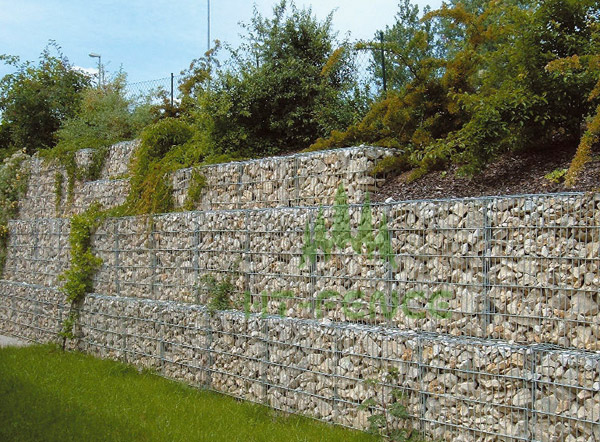

Gabions are wire mesh container and used in many situations including the stabilization of earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls.

Previous Product

Next Product

Inquire Now

Download prochure

  • Gabions are wire mesh container and used in many situations including the stabilization of earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls. They can be manufactured in welded mesh or woven wire. Welded mesh gabions are faster to erect and do not need tensioning. This allows them to keep their shape, to be free from bulges and depressions and fit easily against the wall. It is possible to cut holes in them if needed to pass pipes etc through and they can be machine filled.

    Welded Mesh Gabions are manufactured from Galfan Wire or triple life coated.

    3" x 3" (76.2mm x 76.2mm) x 3, 4 or 5mm Galfan coated (95% Zinc 5% Aluminium for up to 4 times the life of a galvanised finish. We also supply gabion baskets in the same specification as the above but with a 2.7mm Galfan coated core which is then green PVC coated to an over all diameter or 3.22mm, average coating thickness is no less than 0.25mm.


    Welded gabion Features

    ● Easy to assemble

    ● Easy to install

    ● Good decotative,not only used on river area,but also can used on decorative wall

    ● Strong anti-corrosion:heavy galvanized wire or Galfan wire,or glued PVC coated wire,PE coated wire to make the gabion wire mesh can more improve capacity of anti-corrosion,can adapted to sea environment.

    ● Economy: Wire mesh gabions are less expensive than most construction materials. Graded stone fill is usually locally available. Waste materials such as crushed concrete may be specified in place of stone.


    Welded gabion Application

    It is often used in earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls.,gabion umbrella stand,etc.


  • Welded Gabion Specification
    Gabion size(m)Mesh openingWire diameterSurface treatment
    1×1×150 x 50mm      75 x 75mm      76 x 76mm    100 x 100mm3-6mmGalvanized      Galfan    PVC coated
    2×1×13-6mm
    3×1×13-6mm
    0.5×0.5×0.53-6mm
    1×0.5×0.53-6mm
    1×1×0.53-6mm
    2×1×0.53-6mm
    3×2×0.3(Mattress)75 x 75mm3-6mm
  • Wire used low carbon steel wire,wire diameter 3.0-6.0mm

    Spirals used low carbon steel wire,wire diameter 4.0-5.0mm

    Surface:Galvanised or galfan orpvc coated finished

    Steel grade can be chose.


  • Delivery Terms:FOB, CIF

    Payment Currency:USD, EUR, AUD,JPY, CAD, GBP, CNY

    Payment Item:T/T, L/C, PayPal, Escrow

    Nearest Port:Xingang port,Qingdao port

    Delivery Time:General after 25days upon received T/T30% advance payment

    Popular Payment detail: T/T 30% in advance as deposit, the balance against received the copy of B/L.
